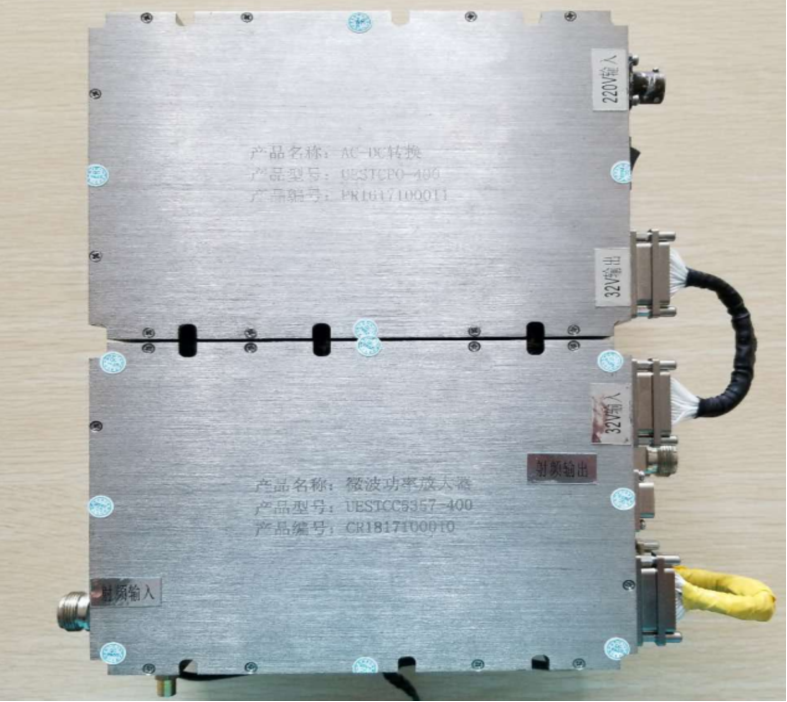

Amplifier components (radar field)
Amplifier components (radar field)
Features
✓
Covers C/X/Ku radar frequency bands
✓
High pulse saturated output power
✓
Fast edge, low jitter and flat pulse top
Applications
✓
Pulse radar transmitting front-end
✓
Radar system prototype development
✓
Radar signal simulation test
Frequency range: 5-6GHz/8.5-9.6GHz/34-36GHz
Saturated output power: 400W (top drop ≤ 0.5dB)
Signal mode: Pulse (pulse width 50us~200us, duty cycle 20%)
Pulse rising and falling edges: ≤ 50ns
Pulse front jitter: ≤ 10ns
Top fluctuation: ≤ 0.5dB
