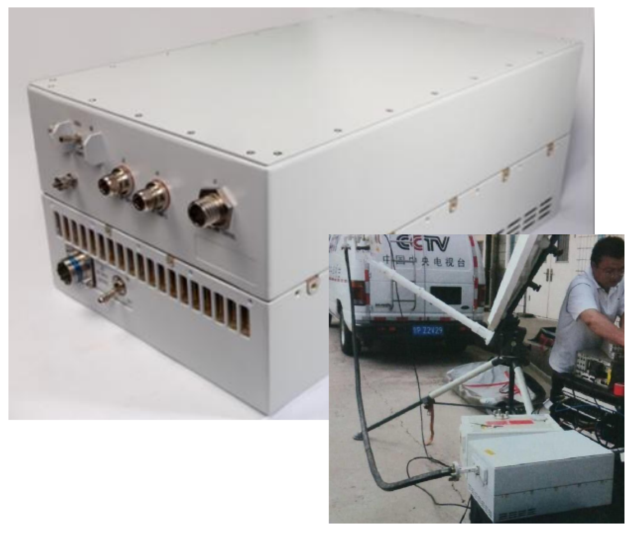

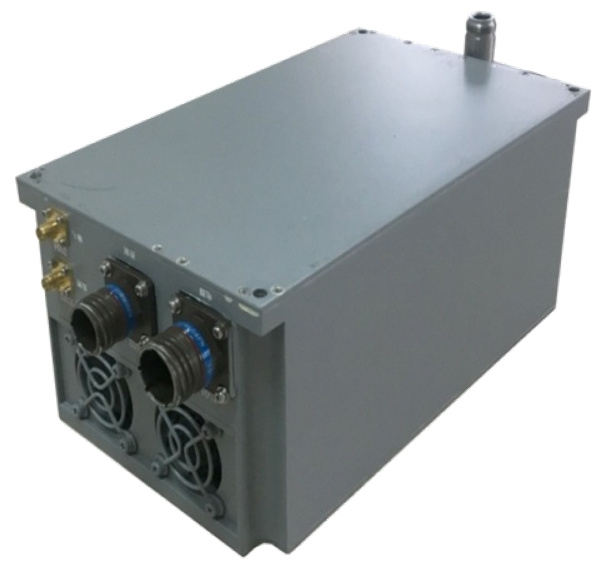

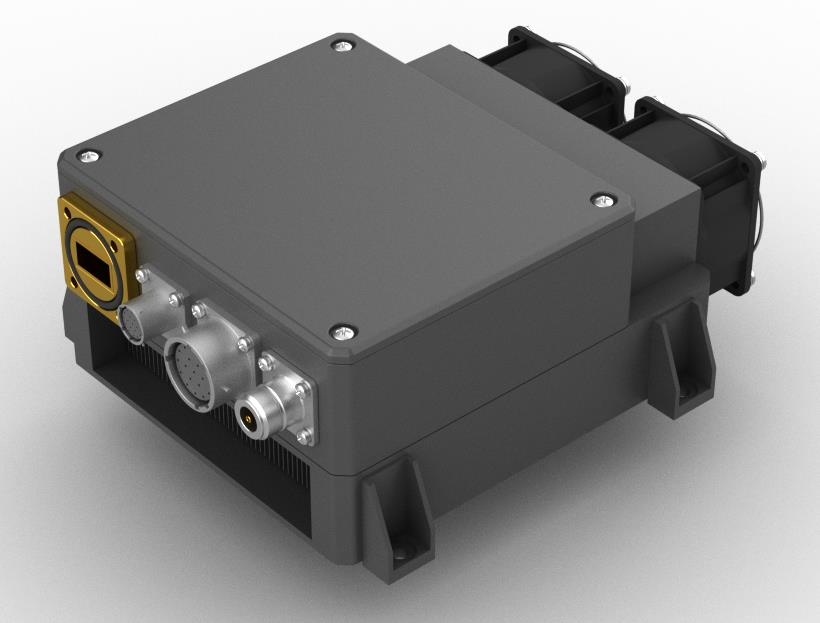

Power amplifier system (in the field of satellite communication)

Frequency range: 13.75–14.5 GHz / 29–31 GHz / 43.5–45.5 GHz.

Output power: 50–1000 W (CW); other power specifications can be customized.

Gain adjustment range: ≥ 25 dB.

Third‑order adjustment: ≤ −25 dBc (3 dB power return for a two‑tone signal).

In‑band gain flatness: ≤ ± 1.5 dB.

Spurious emission level (dispersion): ≤ −65 dBc.
